XTOOL SD100 Full OBD2 Functions Automotive Code Reader Supports All OBD-II Protocols Lifetime Free Update Online PK Elm327 Item NO.: Pro-0609A

Why choose SD100?

1. Support all OBD2 diagnostic functions: Read Codes, Erase Codes, I/M Readiness, Data Stream View, Freeze Frame, O2 Sensor Test, On-Board Monitor Test, EVAP System Test, Vehicle Info, DTC Lookup

2.Works on all 1996 and newer cars & light trucks that are OBD2 compliant (including the VWM,PWM,ISO,KWP2000 and CAN protocols)

3.With display screen, you can work independently, which is more convenient

4.Permanent free update + one-year warranty

5.Higher quality than X431 CR3001 and ELM327

Supports all OBD-II protocols：

1.SAE J1850 PWM (41.6K baud)

2. SAE J1850 VPW (10.4K baud)

3. ISO 9141-2 (5 baud init,10.4K baud)

4. ISO 14230-4 KWP (5 baud init,10.4 Kbaud)

5. ISO 14230-4 KWP (fast init,10.4 Kbaud)

6. ISO 15765-4 CAN (11bit ID,500 Kbaud)

7. ISO 15765-4 CAN (29bit ID,500 Kbaud)

8. ISO 15765-4 CAN (11bit ID,250 Kbaud)

9. ISO 15765-4 CAN (29bit ID,250 Kbaud

Features：

Parts might cause your check engine light on include:

1. Gas Cap

2. Oxygen Sensor

3. Air Fuel Ratio Sensor

4. Mass Air Flow Sensor

5. Ignition Coils

6. Spark Plug Wires

7. Spark Plugs

8. Thermostat

9. EGR Valve

10. Evaporatative Emission Canister Purge Valve(EVAP)

11. Catalytic Converter.

NOTE:

If the engine light is not turned off in time, it will Cause Serious environmental pollution, Increased fuel consumption, Increased engine noise, Increased in temperature, ect

Functions:

- Read and erase fault codes

Read DTCs (Diagnostic Trouble Codes) to locate the issues,Clear DTCs to turn off the Check Engine Light after certain repairs

- Live Data Viewing

Live data are displayed in a time-based chart to help customers to better analyze the abnormal parameter.This function will let you see engine performance information, if there are any trouble codes or issues with your engine or ECU.

- Freeze Frame

Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs. It intended to provide you with a guide as to where a fault might be occurring within a vehicle.

- I/M Readiness Status

Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

- O2 Sensor Test

Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

- On-Board Monitor Test

etrieves and displays test results for emission-related powertrain components and systems. Which is a way to find out if the engine has any misfire or compression problems on a particular cylinder, or other data that might indicate a problem but isn’t severe enough to trigger a check engine light.

- Read Vehicle Information

Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

- Component Test

Certain vehicle components can be actuated by commands sent from the scanner to test their operability

Lifetime Free Update Online

The XTOOL SD100 support update online via PC. You can add more more models for each functions and fixed the bugs after updating it.

HOW TO CONNECT THE SD100 TO VEHICLES?

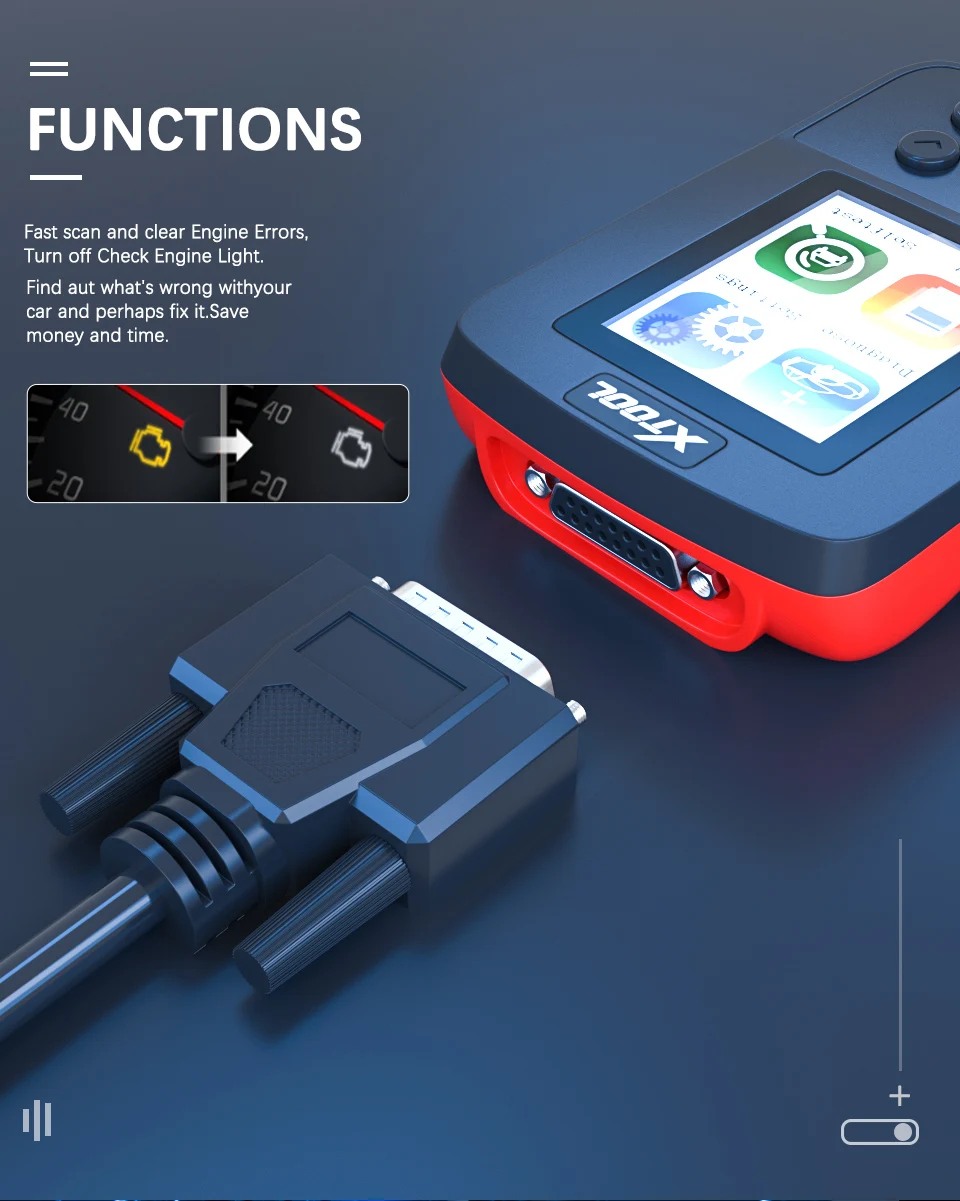

1. Connect the DB15 connector of test cable to the SD100 main frame,and the OBD11-16 connetor to the

vehicles DLC port. (Shown as follows)

2. Switch on the ignition and turn on SD100 to test vehicles.

Wide vehicle coverage：

American Car list:

Need standard obd2 , and release year from 2000-now

For Chrysler, For Ford, For GM, For Jeep, For Lincoln, For Buick, For Cadillac, For Chevrolet, For Dodge, For HM, ect...

European car list:

Need standard obd2 , and release year from 2003-now

For Mercedes Benz, For Smart, For Sprinter, For BMW, For Volkswagen, For Skoda, For Audi, For Opel, For Lamborghini, For Porsche, For Maybach, For Ford, For Land Rover, For Jaguar, For Aston Martin, For Bentley, For Rolls-Royce, For Rover, For Mini, For Vauxhall, For DR, For Ferrari, For Fiat, For Abarth, For Lancia, For Alfa Romeo, For Maserati, For Bugatti, For Peugeot, For Citroen, For Renault, For Saab, For Volvo, For GM, For GMSA, For Dacia , For Seat, ect ...

Russian car list:

Need standard obd2 , andrelease year from 2012 -now

For GAZ, For VAZ, For Lada, For IZH, For Paz, For SeAZ, For UAZ, For ZAZ,ect....

Japanese / Korean car list:

Need standard obd2 , and release year from 2006-now

For Honda, For Acura, For Toyota, For Scion, For Lexus, For Mazda, For Nissan, For Infiniti, For Isuzu, For Daihatsu, For Suzuki, For Mitsubishi, For Subaru, For Samsung, For Daewoo, For Ssangyong, For Hyundai , For Kia, ect ...

Chinese car list:

Need standard obd2 , and release year from 2009 -now

For Great Wall, For Huachen, For Geely, For DF Honda, For Lifan, ect ...
