Home>7.Key Programmer>OBDSTAR>OBDSTAR P004 Adapter and Airbag Repair P004 Jumper for ECU Programming/Reading/Writing Data in Bench Mode
OBDSTAR P004 Adapter and Airbag Repair P004 Jumper for ECU Programming/Reading/Writing Data in Bench Mode

OBDSTAR P004 Adapter and Airbag Repair P004 Jumper for ECU Programming/Reading/Writing Data in Bench Mode Item NO.: Pro-0525F

Write a Review
US$ 32.00
Quantity
Stock ( 51402 )

Copy and share this link on social network or send it to your friends

Copy
Product Name OBDSTAR P004 Adapter and Airbag Repair P004 Jumper for ECU Programming/Reading/Writing Data in Bench Mode
Item NO. Pro-0525F
Weight 0.5 kg = 1.1023 lb = 17.6370 oz
Category 7.Key Programmer > OBDSTAR
Creation Time 2023-05-25

OBDSTAR P004 Adapter and Airbag Repair P004 Jumper for ECU Programming/Reading/Writing Data in Bench Mode


Highlights:


1. OBDSTAR airbag reset kit works with X300 DP Plus C and Odo Master Full Configuration for airbag reset. With the airbag reset kit, multi-functions can be completed in one tablet device. It's friendly, economical, convenient for vehicle repair plants and fast repair shops.

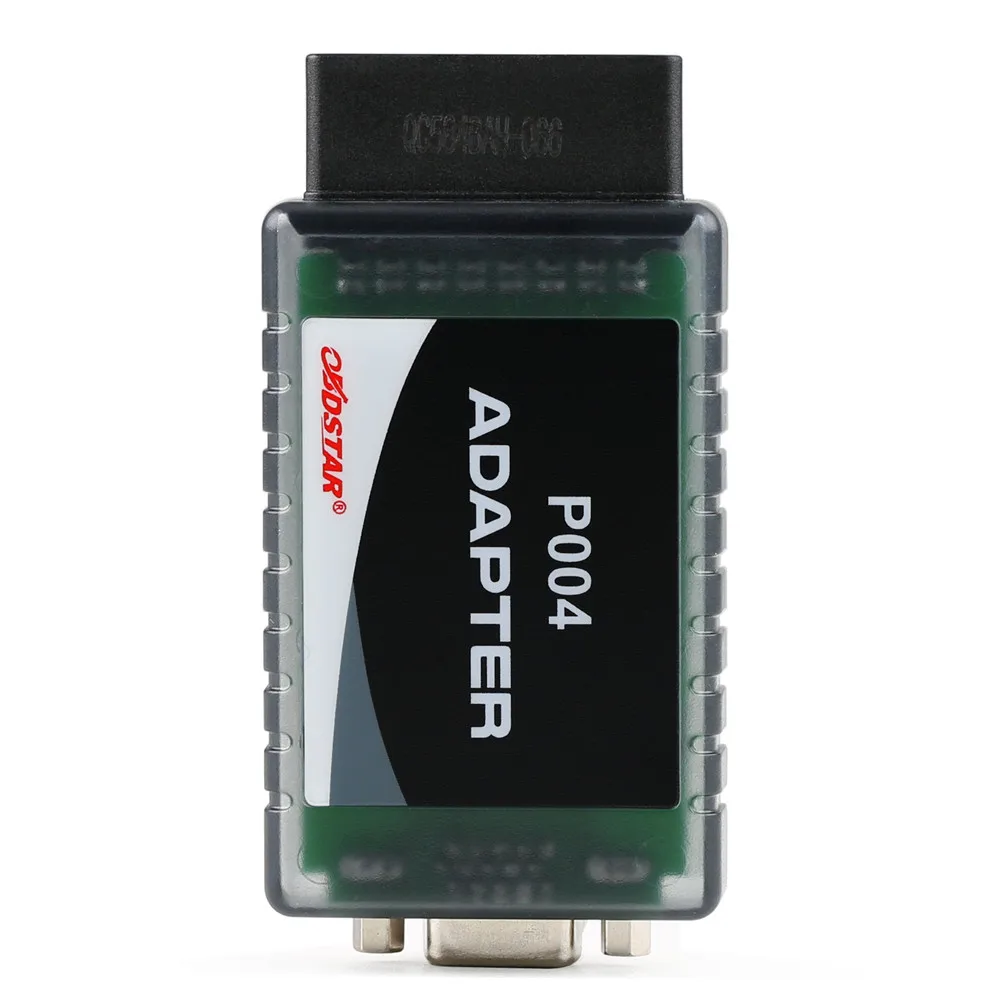

2. P004 adapter is designed for ECU programming, reading or writing data in bench mode.


Notice:

X300 DP PLUS full version only need to buy this kit to do airbag reset.

Odo Master needs to buy Airbag Reset Software Plus P004 Adapters & Jumper Cable

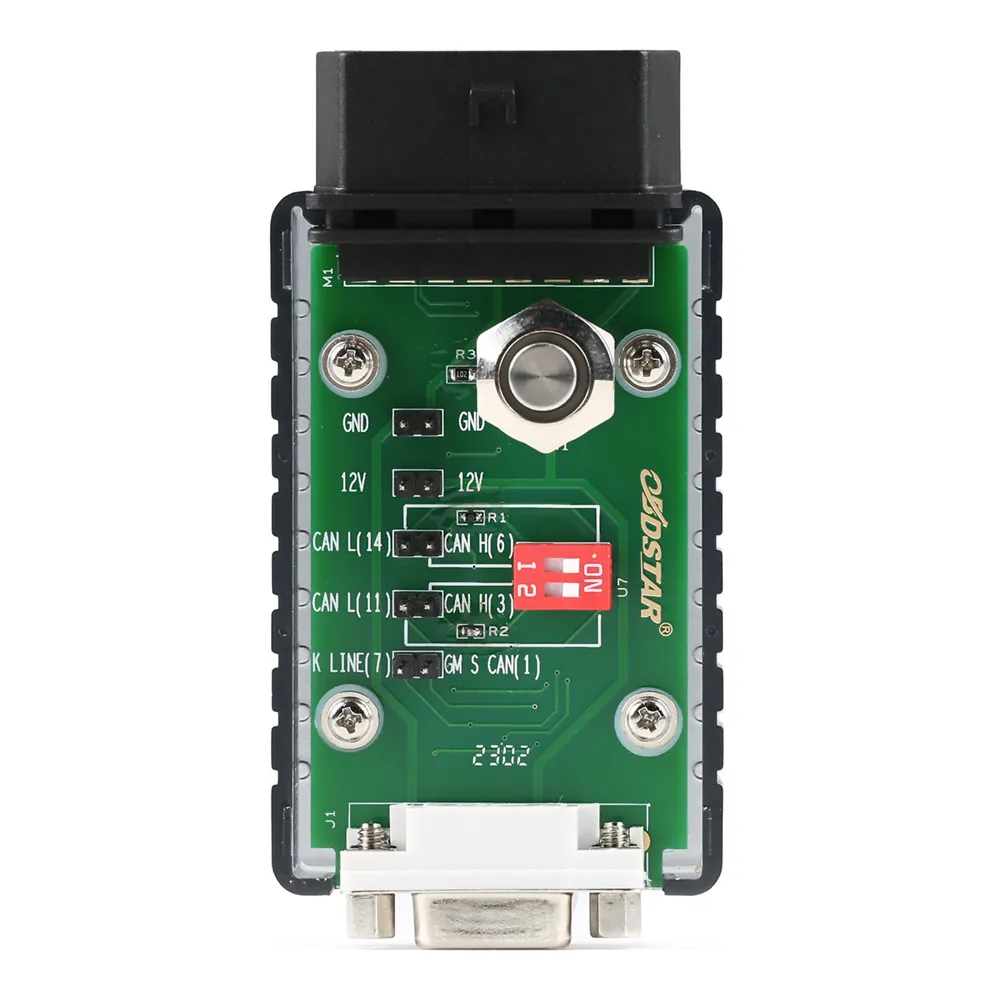

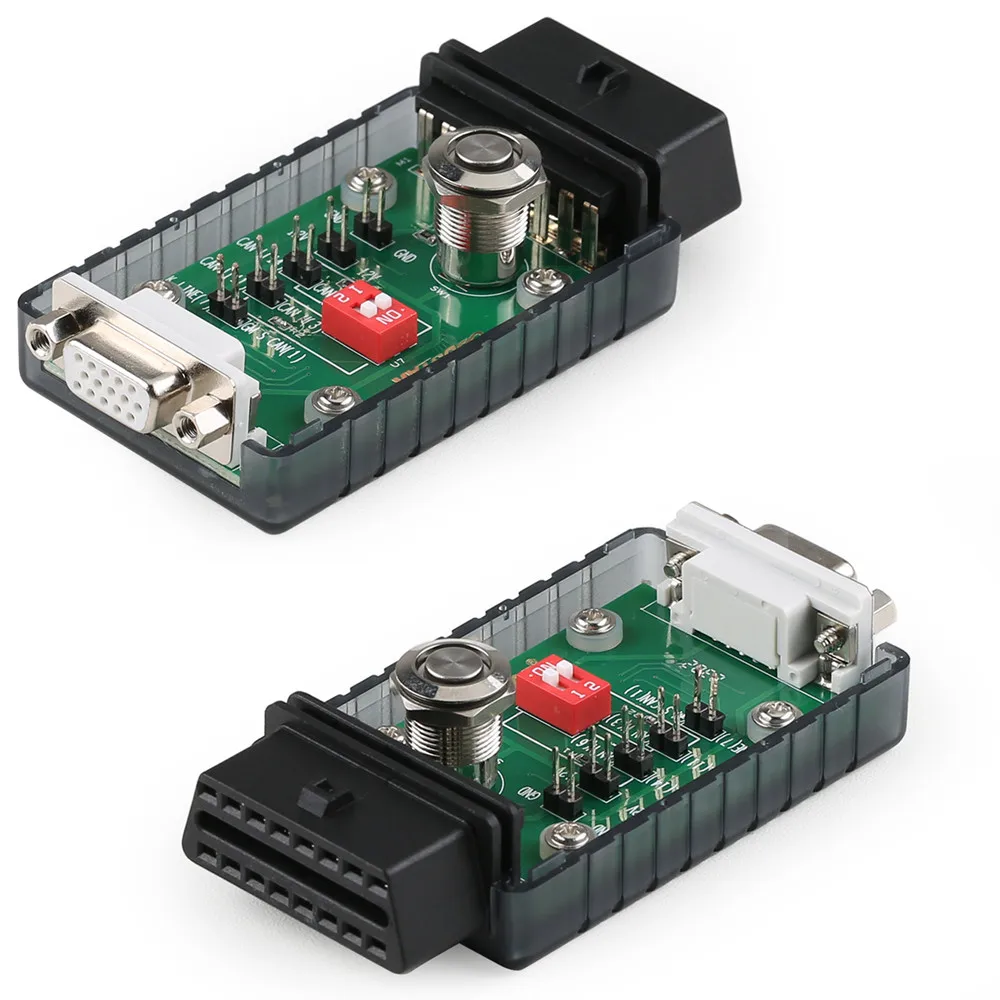

OBDSTAR Airbag Reset Kit Features:


1. Programming devices keep in normal communication no matter the 12V power button is turned on or off ;

2. Turn on or off 120Ω resistance at any time for CANBUS ECU;

3. Support 6&14 and 3&11 CANBUS communication at the same time;

4. Support GM Single CAN(GM SCAN);

5. Support K communication;

6. P004 jumper can connect with multiple wires at the same time, make wiring clearer and easier;

7. DB15 connector can communicate with any OBDII-16 I/O interface.



OBDSTAR Airbag Reset Basic Functions:


1. supports one-click airbag reset for 38 brands and over 3000 ECU part No.

2. supports fuzzy search for ECU part No.

3. contains clear BENCH mode wiring diagram

4. contains powerful and complete description files for fault code

5. calculate PinCode

More functions are in developing...



OBDSTAR Airbag Reset Advanced Functions:


Ecu Info. /Read DTC/ Erase DTC/ Read EEPROM/ Write EEPROM

Read FLASH/ Write FLASH/ Erase Crash/ Write VIN ...



Vehicle Coverage


1. Supported Brands(38 Brands)


For Acura, For Audi, For Benz, For Buick, For Cadillac, For Chevrolet, For Chrysler, For Citroen, For Dacia, For Dodge, For Ford, For GMC, For GreatWall, For Honda, For Hyundai, For Infiniti, For Jaguar, For Jeep, For KIA, For Land Rover, For Lincoln, For Maserati, For Mazda, For Mitsubishi, For Nissan, For Opel, For Peugeot, For Porschx, For Renault, For Seat, For Skoda, For Smart, For Subaru, For Suzuki, For Tesla, For Toyota, For VW, For Volvx


2. Over 3000 ECU part No.(supporting fuzzy search)

3. MCU types

H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570

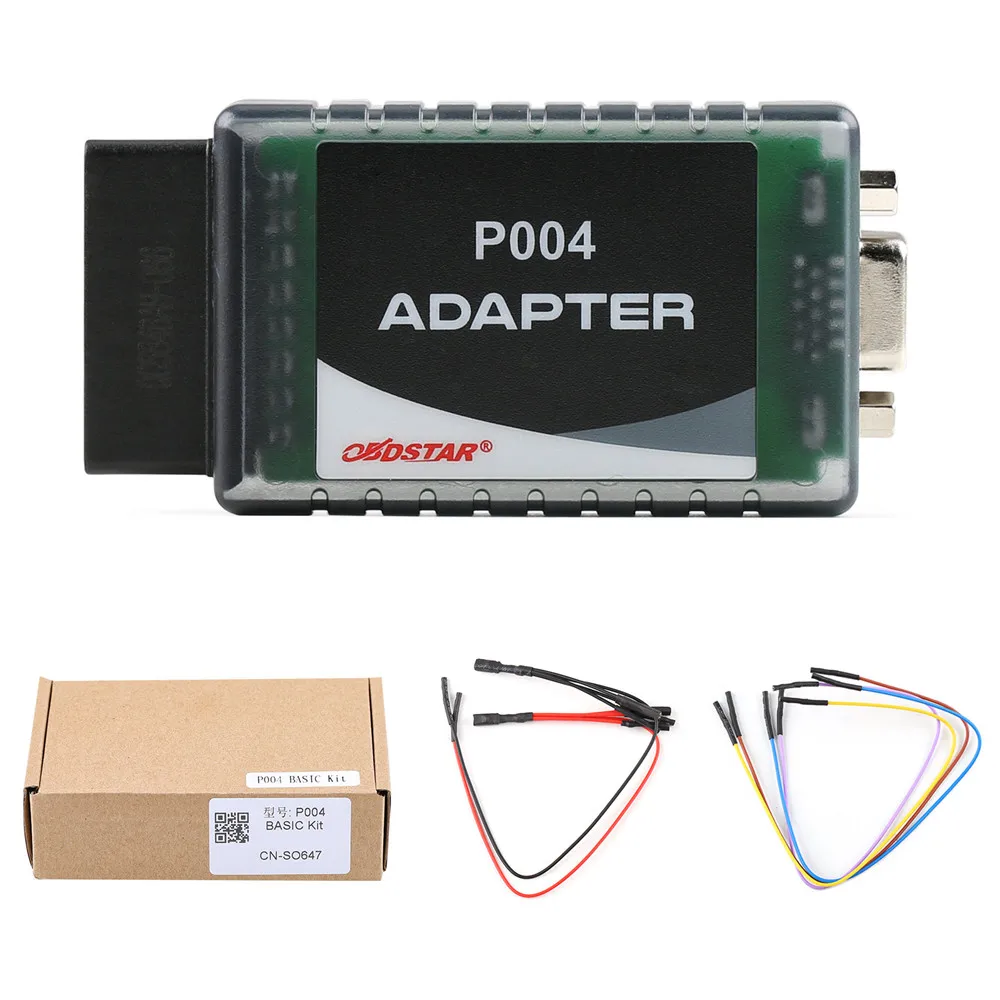

Package Includes:

1pc x P004 adapter

1pc x P004 jumper
