LCD Digital Multimeter Auto Range AC/DC Pocket Ammeter Voltmeter Tester Tool Meter Multimetro 1.5V XB866

LCD Digital Multimeter Auto Range AC/DC Pocket Ammeter Voltmeter Tester Tool Meter Multimetro 1.5V XB866 Item NO.: XB-006

Write a Review
US$ 11.00
Color
XB-866
Quantity
Stock ( 8994 )

Copy and share this link on social network or send it to your friends

Copy
Product Name LCD Digital Multimeter Auto Range AC/DC Pocket Ammeter Voltmeter Tester Tool Meter Multimetro 1.5V XB866
Item NO. XB-006
Weight 0.132 kg = 0.2910 lb = 4.6562 oz
Category 7.Key Programmer > Other brand device
Creation Time 2023-12-14

Features:
100% quality and Brand new.
New type holster, streamline design and very portable
Overrange protection for all ranges

Specification:

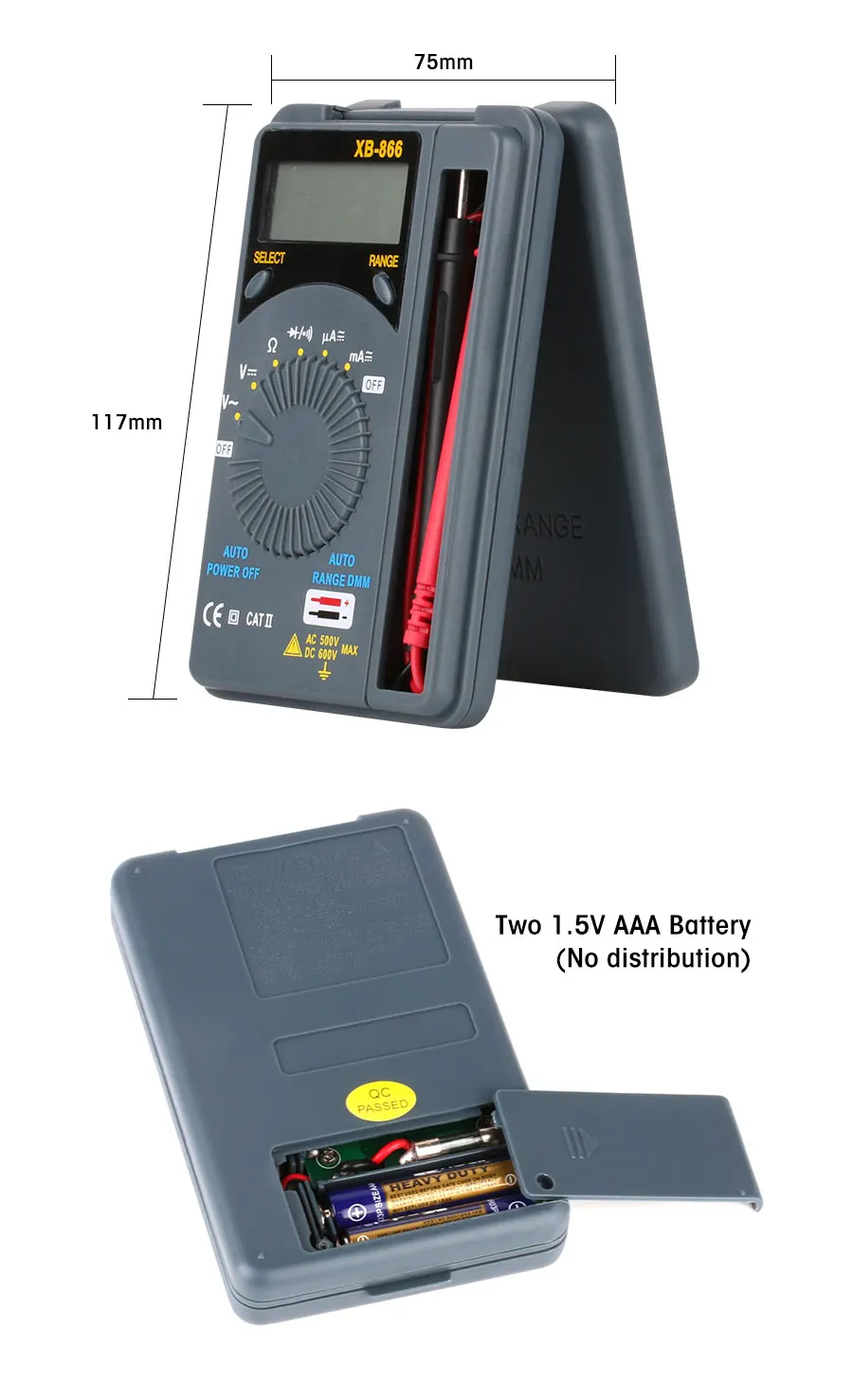

1.Product size: 120*75*20mm
2.Accuacy is specified for a period of year after calibration and at 18℃to 28℃(64℃ F to 82℃) with relativehumidity to 75%
3.It includes 7 function with 25 rangs
4.Max. Voltage Between Terminals And Earth Ground; 600V DC or 500V AC
5.Oprerating Altitude:2000 meters(7000ft)maximum

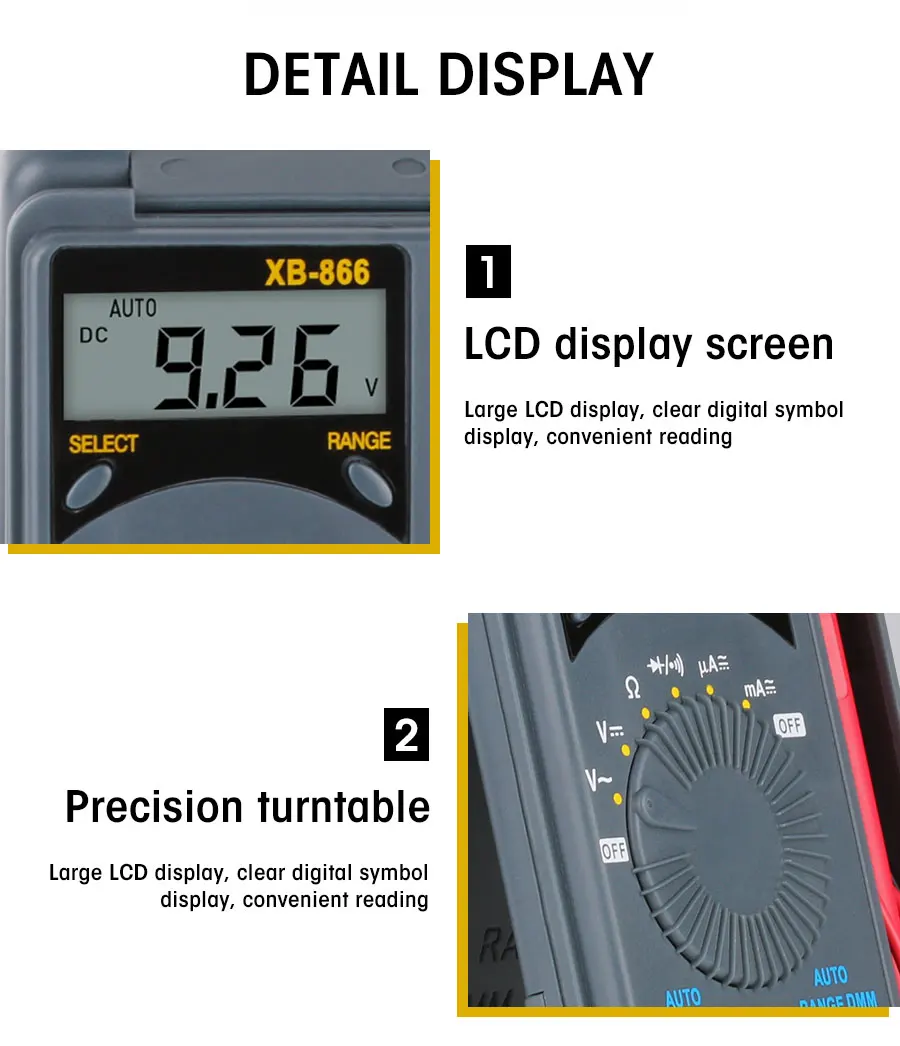

6.Display: LCD
7.MAX. Show Value: 1999 counts max Polarity Indication:"-" indicates negative polarity
8.Overrange Indication: Display" OL" or "-OL"
9.Sampling Time: approx.0.4second Until showing of function and electrical capacity
10.Auto power supply: 15min
11.Power Supply: 1.5V*2(NOT included)
12.Low Battery Indication: dispalyed
13.Temperature, Factor<0.1*Accuracy/ ℃
14.Operating Temperature: 0 ℃ to 40 ℃ (32°F to 104 °F)
15.Storage Temperature: 0 ℃ to 50 ℃ (10°F to 122 °F)
16.Circumstance Temperature: 23±5 ℃ Relative Humiditu: <70%
17.Auto Range:
DC Voltage: 200mV, 2V, 20V, 200V, 600V
AC Voltage: 2V, 20V, 200V, 500V (Frequency Range: 40~400Hz)
DC Current: 200uA, 2000uA, 20mA, 200mA
AC Current: (Take it only as reference) 200uA(±5% of rdg), 2000uA (±3% of rdg),
20mA (±5% of rdg), 200mA (±3% of rdg) (Frequency Range: 40~400Hz)
18.Resistance: 200Ω, 2KΩ, 20KΩ, 200KΩ, 2MΩ, 20MΩ
19.Diode Test: test current 1mA, test voltage 1.5V DC
20.Continuity: <80Ω Beeper

Package Included:
1 x Mini LCD Digital Multimeter (Not included the battery)
1 x User Manual
